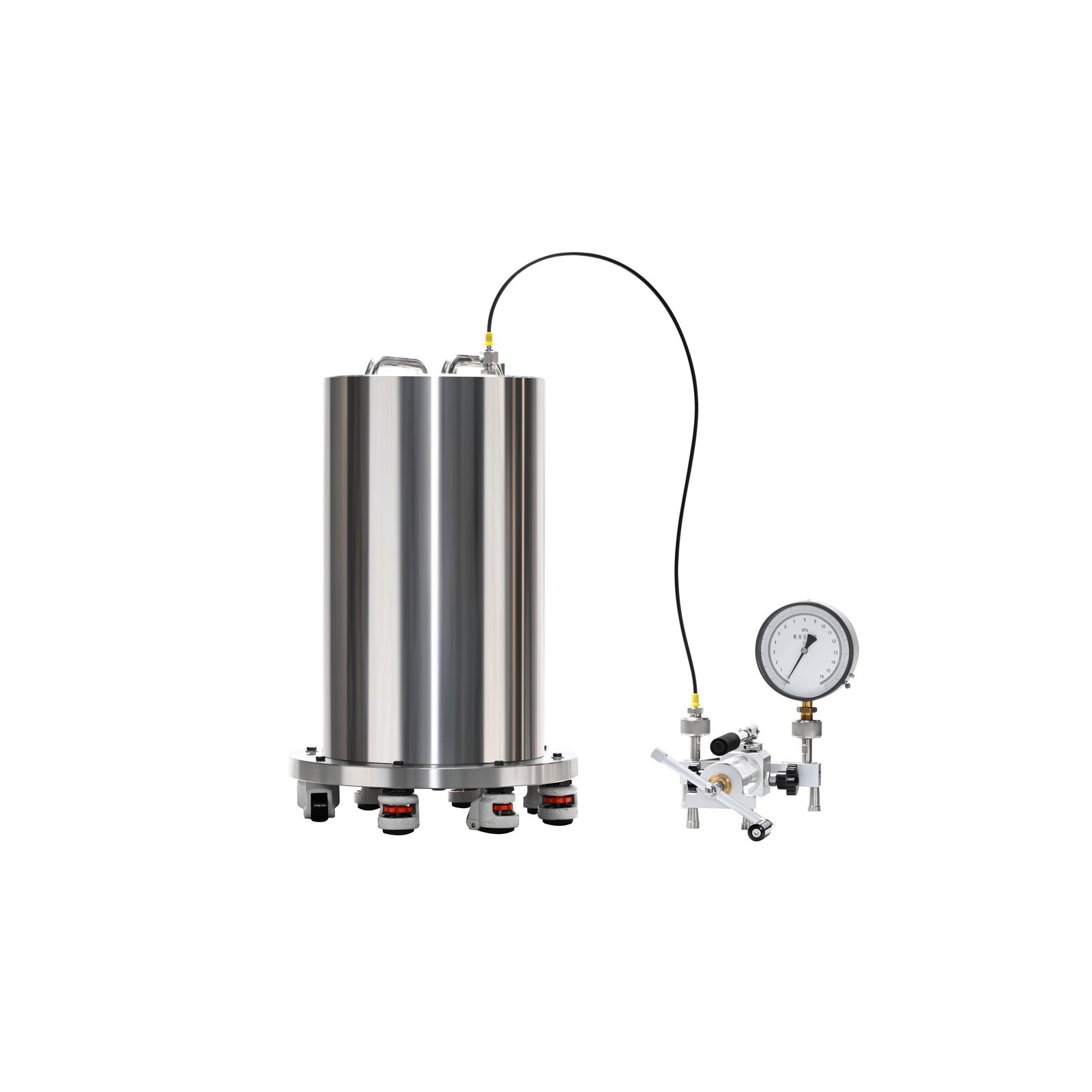

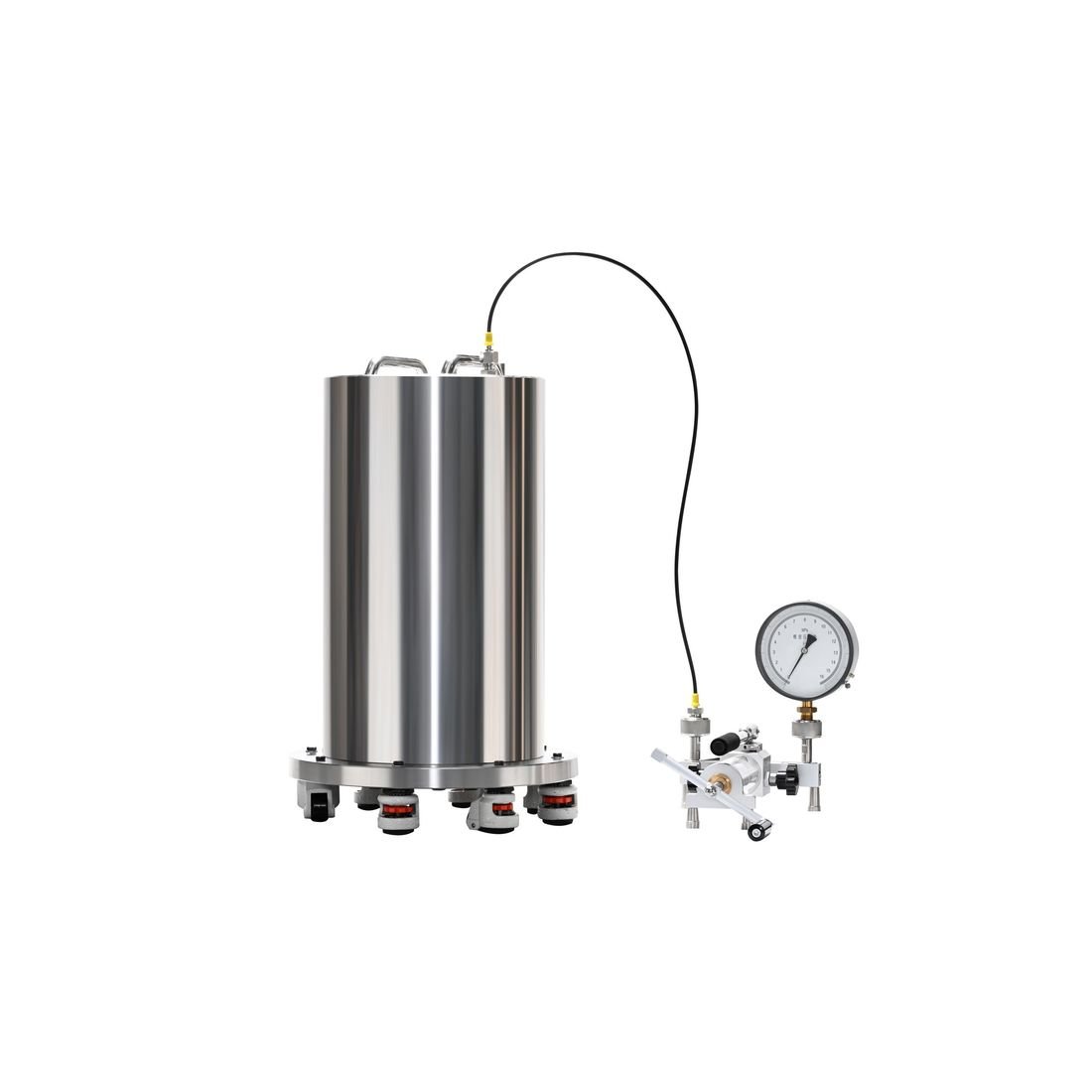

Water Pressure Testing Chamber 10MPa/20L (Stainless Steel)
A professional-grade hydrostatic testing apparatus in 304 stainless steel, built to simulate underwater pressures and validate the integrity of subsea equipment such as enclosures, cable penetrators, and connectors. It includes a manual hydraulic pump, a 20-liter pressure vessel, and a hatch cover with 18 penetrator-compatible ports for live electrical connections during testing.
1 / 32Click to enlarge
Free delivery anywhere in IndiaUsually within 2 weeks. The date is confirmed on your quote.
SKU BS-TAE-WPTCH-SSX-10A1
Nothing to pay now. We reply within one business day with a quotation at this price and a delivery date.
- Part number
- BS-TAE-WPTCH-SSX-10A1
- Category
- Testing Equipment
- Type
- Pressure test chamber
Water Pressure Testing Chamber 10MPa/20L (Stainless Steel) price in India
| Options & SKU | Price | Add or enquire |
|---|---|---|
StandardBS-TAE-WPTCH-SSX-10A1 | ₹15,17,092.98 | Enquire about Standard |
Prices are in rupees and include GST and delivery anywhere in India. Delivery usually takes up to two weeks, and your quotation gives the exact date.
At a glance
Works with
Used for
- Pressure validation testing for R&D, quality assurance, and prototyping of underwater and subsea components in controlled laboratory environments
Specifications
| Product type | Pressure test chamber |
| Material | 304 stainless steel (chamber and hatch cover) |
| Weight | ~200 kg |
| Operating Temperature Range | 0-50 C |
| Pressure Rating | 10 MPa max operating pressure |
| Chamber Volume | 20 liters |
| Internal Dimensions | 455 mm height x 250 mm diameter |
| Max Simulated Depth | 1,000 m (3,280 ft) |
| Hatch Cover Openings | 18 ports |
| Mobility | 8 fulcrum wheels |
Works with these accessories
Bulkhead Pressure Testing Tube (10 MPa/1,000 m rated, sold separately).
Questions buyers ask
What is the Water Pressure Testing Chamber 10MPa/20L (Stainless Steel) price in India?
₹15,17,092.98. Delivery anywhere in India is included in that price.
What is it made of?
304 stainless steel (chamber and hatch cover).
How much does it weigh?
~200 kg.
Can I get the datasheet and drawings?
Yes. Ask when you request a quote and we will send the manufacturer's datasheet and any drawings we have.
Can I return it?
Yes, within 30 days of delivery, if it is unused and in its original packaging. You pay the return shipping, and we refund 90% of the price after checking the part.
How do I order this in India?
Vebix Automation is an authorised Blu-Sub Mechatronics distributor in Pune and delivers across India. Add it to your cart, or request a quote with the option and quantity. We reply within one business day with a quotation at the listed price and a delivery date, usually within two weeks.
Compare with similar testing equipment
The manufacturer’s figures for this part and the ones most like it, side by side.
| Product | Material | Weight |
|---|---|---|
| Water Pressure Testing Chamber 10MPa/20L (Stainless Steel) this page | 304 stainless steel (chamber and hatch cover) | ~200 kg |
| Bulkhead Pressure Testing Tube | Transparent acrylic, single-piece body | 52 g (short); 142 g (long) |
