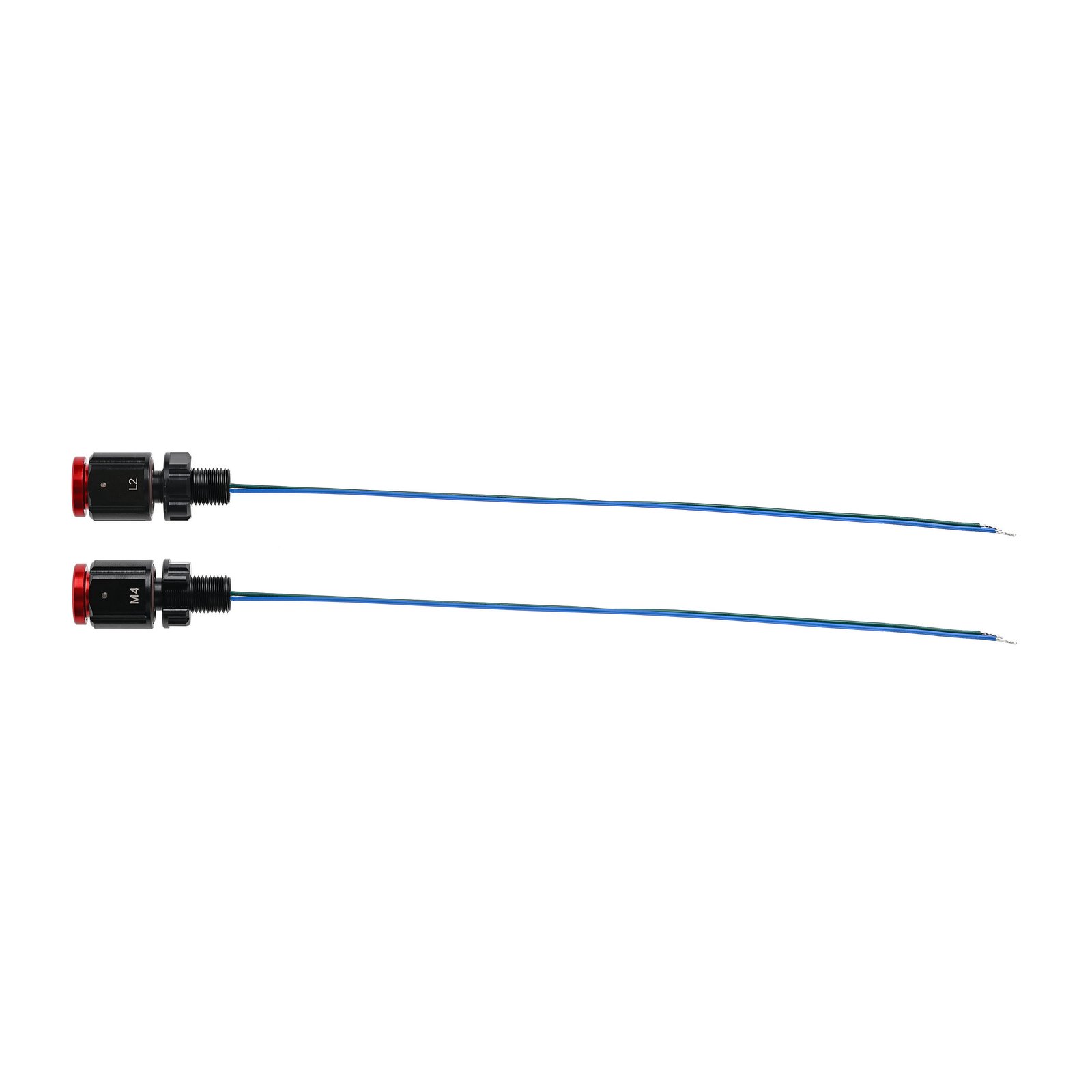

Subsea M10 Pressure Trigger Switch
A depth-rated, normally open switch that functions as a manual momentary button above its trigger pressure and latches closed automatically once submerged past its activation depth, remaining ON as long as that depth is maintained. Used for passive depth-based triggering as well as manual momentary control.
1 / 15Click to enlarge
Free delivery anywhere in IndiaUsually within 2 weeks. The date is confirmed on your quote.
SKU BS-SSC-SSPTS-BLK-1002
Nothing to pay now. We reply within one business day with a quotation at this price and a delivery date.
- Part number
- 2 options, see prices
- Category
- Switches & Potentiometers
- Type
- Pressure trigger switch
Subsea M10 Pressure Trigger Switch price in India
| Options & SKU | Price | Add or enquire |
|---|---|---|
2 Bar · 0.2 MPa (20m) Trigger DepthBS-SSC-SSPTS-BLK-1002 | ₹12,937.21 | Enquire about 2 Bar · 0.2 MPa (20m) Trigger Depth |
4 Bar · 0.4 MPa (40m) Trigger DepthBS-SSC-SSPTS-BLK-1004 | ₹12,937.21 | Enquire about 4 Bar · 0.4 MPa (40m) Trigger Depth |
Prices are in rupees and include GST and delivery anywhere in India. Delivery usually takes up to two weeks, and your quotation gives the exact date.
At a glance
Works with
Used for
- Depth-triggered activation of high-current devices (via MOS Low-Side Switch Board), ROV/AUV dive confirmation, safety interlocks, and kill-switch/limit detection
Specifications
| Product type | Pressure trigger switch |
| Depth Rating | 1,000 m (3,280 ft) |
| Mounting Hole | 10.1 +/- 0.1 mm through-hole, 13 mm recommended hatch thickness |
| Material | Anodized aluminum housing |
| Weight | 22 g |
| Trigger Pressure Options | 2 Bar / 0.2 MPa (~20 m) or 4 Bar / 0.4 MPa (~40 m) |
| Electrical Rating | 0.5 A @ 125 V max |
| Wire | 24 AWG, ~200 mm, blue/green |
| O-ring | 12 x 1.5 mm, FKM75 brown fluorine rubber |
| Design Lifetime | 3 years or 500 cycles |
| Temperature Range | Air: -25 to 60 C; Water: -4 to 40 C |
Works with these accessories
MOS Low-Side Switch Board, Universal M8/M10 Installation Wrench, Spare O-Ring Set, subsea enclosures and end-caps.
Questions buyers ask
What is the Subsea M10 Pressure Trigger Switch price in India?
₹12,937.21. Delivery anywhere in India is included in that price.
What is its depth rating?
1,000 m (3,280 ft).
What is it made of?
Anodized aluminum housing.
Can I get the datasheet and drawings?
Yes. Ask when you request a quote and we will send the manufacturer's datasheet and any drawings we have.
Can I return it?
Yes, within 30 days of delivery, if it is unused and in its original packaging. You pay the return shipping, and we refund 90% of the price after checking the part.
How do I order this in India?
Vebix Automation is an authorised Blu-Sub Mechatronics distributor in Pune and delivers across India. Add it to your cart, or request a quote with the option and quantity. We reply within one business day with a quotation at the listed price and a delivery date, usually within two weeks.
Compare with similar switches & potentiometers
The manufacturer’s figures for this part and the ones most like it, side by side.
| Product | Depth Rating | Material | Weight | Electrical Rating | Wire |
|---|---|---|---|---|---|
| Subsea M10 Pressure Trigger Switch this page | 1,000 m (3,280 ft) | Anodized aluminum housing | 22 g | 0.5 A @ 125 V max | 24 AWG, ~200 mm, blue/green |
| MOS Low-Side Switch Board (BS-ELE-MOSLS series) | — | — | 15A: 12.6 g; 30A: 48.4 g; 120A: 282.5 g | — | — |
| Subsea Embedded Push Button Switch (Non-Magnetic) (BS-SSC-EPBSW-SSX-10A1) | 100 m (328 ft) | 316 stainless steel (non-magnetic) | 19.8 g | Max 50 mA @ 12 VDC; min 10 uA @ 1 VDC | 24 AWG, ~200 mm |
| Subsea M10 Rotary On/Off Switch (BS-SSC-SSRSW-BLK-10A1) | 1,000 m (3,280 ft) | 6061 black anodized aluminum or 316 stainless steel | 20-43 g depending on variant | 0.5 A @ 24 VDC; 0.2 A @ 48 VDC | 24 AWG, green/blue, ~200 mm |
| Subsea M10 Rotary Potentiometer | 1,000 m (3,280 ft) | Black anodized aluminum bulkhead | 29.5 g | — | — |
| Subsea M10 Rotary Waveband Switch | 1,000 m (3,280 ft) | 6061 aluminum, black anodized bulkhead, red knob | — | 0.5 A @ 24 VDC; 0.2 A @ 48 VDC | 24 AWG, ~200 mm |
