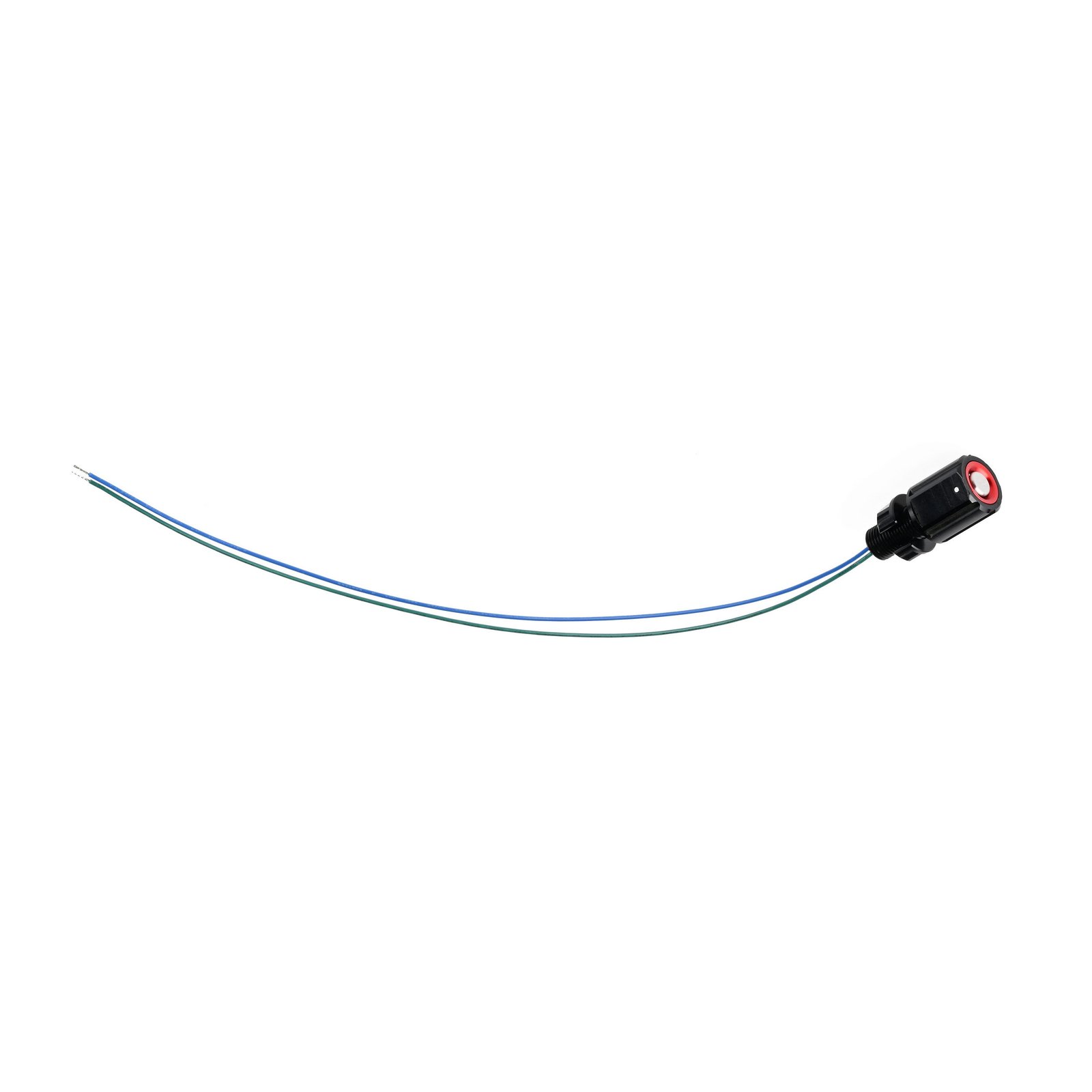

Subsea M10 Tap Switch (Non-Latching)
A compact, depth-rated momentary switch using a magnetic mechanical design (not Hall-effect or pressure-based) for consistent triggering across its operating range. It conducts when tapped and disconnects on release, suited to signaling inputs for microcontrollers or low-current logic in subsea systems.
1 / 12Click to enlarge
Free delivery anywhere in IndiaUsually within 2 weeks. The date is confirmed on your quote.
SKU BS-SSC-SSSWT-BLK-10A1
Nothing to pay now. We reply within one business day with a quotation at this price and a delivery date.
- Part number
- BS-SSC-SSSWT-BLK-10A1
- Category
- Switches & Potentiometers
- Type
- Push switch
Subsea M10 Tap Switch (Non-Latching) price in India
| Options & SKU | Price | Add or enquire |
|---|---|---|
StandardBS-SSC-SSSWT-BLK-10A1 | ₹15,245.35 | Enquire about Standard |
Prices are in rupees and include GST and delivery anywhere in India. Delivery usually takes up to two weeks, and your quotation gives the exact date.
At a glance
Works with
Used for
- Momentary input signaling for remote-operated lighting, thrusters, and human-machine interfaces in ROVs and AUVs
Specifications
| Product type | Push switch |
| Depth Rating | 1,000 m (3,280 ft) |
| Mounting | M10 bulkhead-style thread |
| Material | Black anodized aluminum |
| O-ring | 12 x 1.5 mm, FKM75 fluorine rubber |
| Electrical Rating | 0.5 A @ 125 VAC (varies by DC voltage) |
| Wire | 24 AWG, ~200 mm, blue/green |
| Button Travel | ~1 mm |
| Temperature Range | -10 to 70 C |
| Design Lifetime | 3 years or 500 cycles |
Works with these accessories
Toggle Relay Control Module (for latched on/off behavior), subsea enclosures, M10 Coupling Tube, Universal M8/M10 Installation Wrench.
Questions buyers ask
What is the Subsea M10 Tap Switch (Non-Latching) price in India?
₹15,245.35. Delivery anywhere in India is included in that price.
What is its depth rating?
1,000 m (3,280 ft).
What is it made of?
Black anodized aluminum.
Can I get the datasheet and drawings?
Yes. Ask when you request a quote and we will send the manufacturer's datasheet and any drawings we have.
Can I return it?
Yes, within 30 days of delivery, if it is unused and in its original packaging. You pay the return shipping, and we refund 90% of the price after checking the part.
How do I order this in India?
Vebix Automation is an authorised Blu-Sub Mechatronics distributor in Pune and delivers across India. Add it to your cart, or request a quote with the option and quantity. We reply within one business day with a quotation at the listed price and a delivery date, usually within two weeks.
Compare with similar switches & potentiometers
The manufacturer’s figures for this part and the ones most like it, side by side.
| Product | Depth Rating | Material | O-ring | Electrical Rating | Wire |
|---|---|---|---|---|---|
| Subsea M10 Tap Switch (Non-Latching) this page | 1,000 m (3,280 ft) | Black anodized aluminum | 12 x 1.5 mm, FKM75 fluorine rubber | 0.5 A @ 125 VAC (varies by DC voltage) | 24 AWG, ~200 mm, blue/green |
| MOS Low-Side Switch Board (BS-ELE-MOSLS series) | — | — | — | — | — |
| Subsea Embedded Push Button Switch (Non-Magnetic) (BS-SSC-EPBSW-SSX-10A1) | 100 m (328 ft) | 316 stainless steel (non-magnetic) | — | Max 50 mA @ 12 VDC; min 10 uA @ 1 VDC | 24 AWG, ~200 mm |
| Subsea M10 Pressure Trigger Switch | 1,000 m (3,280 ft) | Anodized aluminum housing | 12 x 1.5 mm, FKM75 brown fluorine rubber | 0.5 A @ 125 V max | 24 AWG, ~200 mm, blue/green |
| Subsea M10 Rotary On/Off Switch (BS-SSC-SSRSW-BLK-10A1) | 1,000 m (3,280 ft) | 6061 black anodized aluminum or 316 stainless steel | 12 x 1.5 mm, FKM75 fluorine rubber | 0.5 A @ 24 VDC; 0.2 A @ 48 VDC | 24 AWG, green/blue, ~200 mm |
| Subsea M10 Rotary Potentiometer | 1,000 m (3,280 ft) | Black anodized aluminum bulkhead | 12 x 1.5 mm, FKM75 fluorine rubber | — | — |
