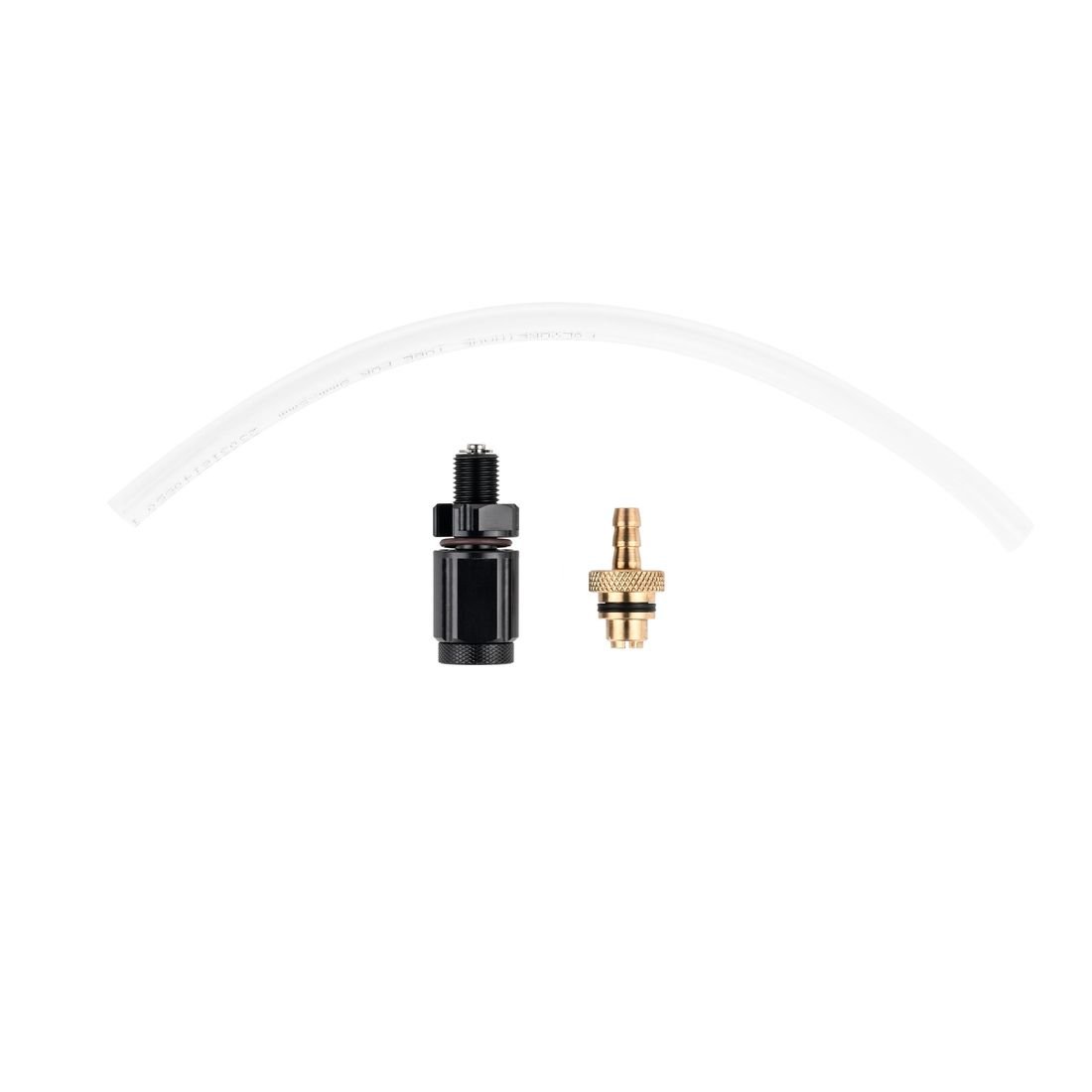

Subsea M10 Self-Sealing Vent & Vacuum Plug
A vacuum vent/plug for leak testing and maintaining internal negative pressure in subsea enclosures. Its self-sealing design uses an internal valve and lock cap that preserves vacuum state after the pump disconnects, preventing condensation and helping monitor slow pressure shifts over time -- a step up from the simpler M8 model.
1 / 12Click to enlarge
Free delivery anywhere in IndiaUsually within 2 weeks. The date is confirmed on your quote.
SKU BS-SSC-SSVPL-BLK-10A1
Nothing to pay now. We reply within one business day with a quotation at this price and a delivery date.
- Part number
- BS-SSC-SSVPL-BLK-10A1
- Category
- Enclosures
- Type
- Vent and vacuum plug
Subsea M10 Self-Sealing Vent & Vacuum Plug price in India
| Options & SKU | Price | Add or enquire |
|---|---|---|
StandardBS-SSC-SSVPL-BLK-10A1 | ₹12,093.55 | Enquire about Standard |
Prices are in rupees and include GST and delivery anywhere in India. Delivery usually takes up to two weeks, and your quotation gives the exact date.
At a glance
Works with
You may also need
Used for
- Long-term vacuum retention, deep-water deployment, and pressure monitoring for subsea enclosures without a continuously attached pump
Specifications
| SKU | BS-SSC-SSVPL-BLK-10A1 |
| Product type | Vent and vacuum plug |
| Depth Rating | 1,000 m / 3,280 ft |
| Mounting Hole | 10.1 +/- 0.1 mm |
| Material | Copper plug; aluminum body; plastic lock cap |
| Weight | 45 g |
| O-ring Size | 12 x 1.5 mm (FKM75) |
| Hose Diameter | 5 mm ID / 8 mm OD |
| Panel Thickness | 13 mm recommended |
Works with these accessories
Subsea Watertight Enclosure Box; Subsea Enclosure Acrylic/Aluminum Tubes; Aluminum/Acrylic End-Caps with M10 ports; Universal M8/M10 Installation Wrench; MOLYKOTE 111 lubricant; spare O-ring sets
Questions buyers ask
What is the Subsea M10 Self-Sealing Vent & Vacuum Plug price in India?
₹12,093.55. Delivery anywhere in India is included in that price.
What is its depth rating?
1,000 m / 3,280 ft.
What is it made of?
Copper plug; aluminum body; plastic lock cap.
Can I get the datasheet and drawings?
Yes. Ask when you request a quote and we will send the manufacturer's datasheet and any drawings we have.
Can I return it?
Yes, within 30 days of delivery, if it is unused and in its original packaging. You pay the return shipping, and we refund 90% of the price after checking the part.
How do I order this in India?
Vebix Automation is an authorised Blu-Sub Mechatronics distributor in Pune and delivers across India. Add it to your cart, or request a quote with the option and quantity. We reply within one business day with a quotation at the listed price and a delivery date, usually within two weeks.
Compare with similar enclosures
The manufacturer’s figures for this part and the ones most like it, side by side.
| Product | Material | Weight | Depth Rating |
|---|---|---|---|
| Subsea M10 Self-Sealing Vent & Vacuum Plug this page | Copper plug; aluminum body; plastic lock cap | 45 g | 1,000 m / 3,280 ft |
| Aluminum Tube Enclosure Mounting Plate | Black anodized aluminum | 82 g (wide) / 19 g (narrow) | — |
| Electronic Tray Set for Enclosure Tube | Plastic-sprayed cold-rolled steel | 82-294 g depending on diameter/length | — |
| Enclosure Tray Shelf Support (Single-Point) | Cold-rolled steel plate, spray coated | 41-101 g depending on length | — |
| Insulated PCB Board Shelf for Enclosure Tube | Green double-sided insulated PCB material | 16-179 g depending on diameter/length | — |
| Subsea Acrylic End-Cap | Transparent polished acrylic | 46-195 g depending on size | 300 m (85mm) / 200 m (115mm) / 50 m (165mm) |
