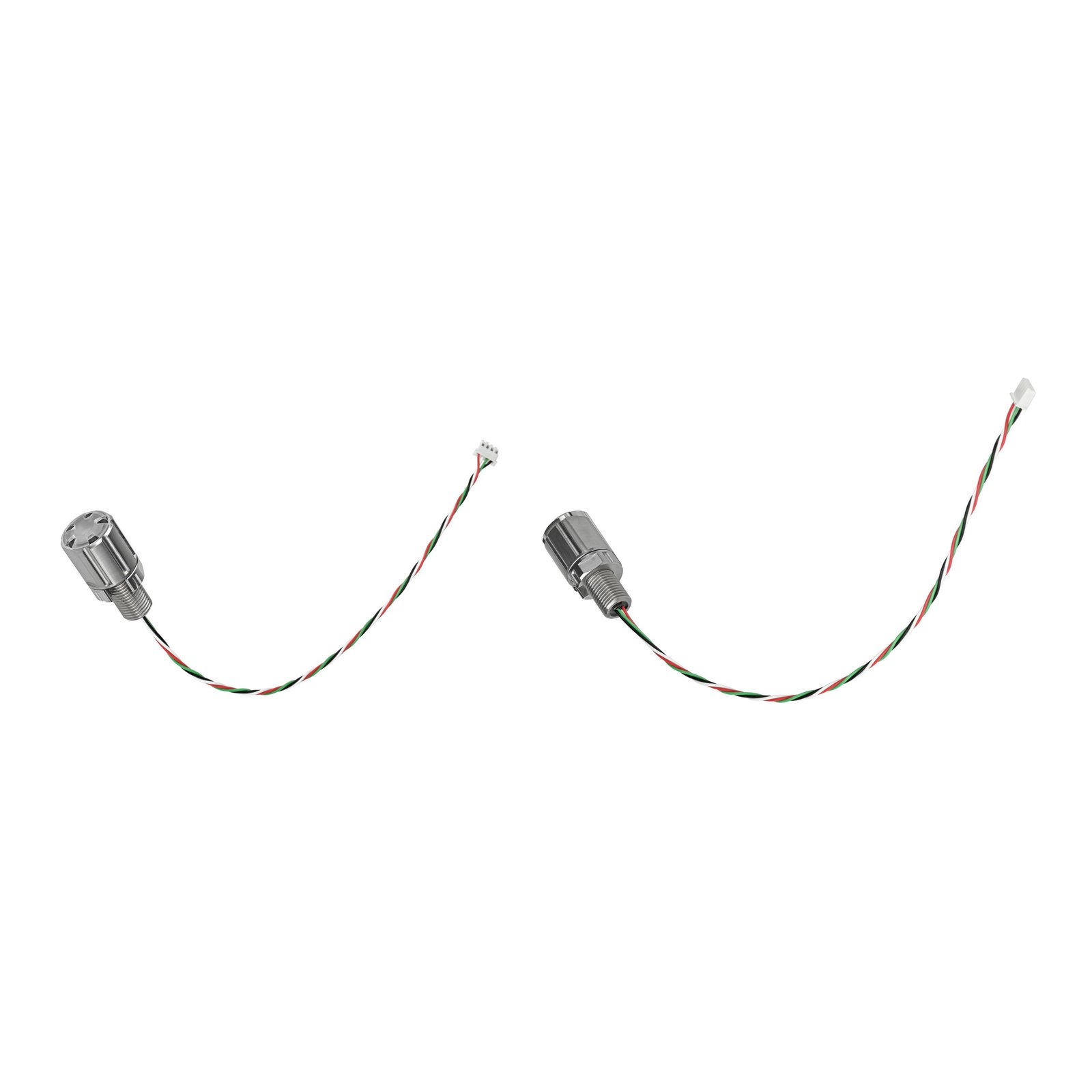

Subsea M14 Metal Diaphragm Depth Sensor (0-35Bar)
A rugged, oil-filled absolute pressure sensor for high-reliability, long-term subsea deployments. It uses a corrugated stainless steel diaphragm with sealed internal sensing and outputs compensated depth/temperature data over serial TTL (USART) with 24-bit resolution, making it suited to permanent installations and continuous submersion.
/LR/disp/Blu-Sub_M14DepthSen_LR_01.jpg)
1 / 16Click to enlarge/LR/Blu-Sub_M14DepthSen_LR_01.jpg)
/LR/Blu-Sub_M14DepthSen_LR_02.jpg)
/LR/Blu-Sub_M14DepthSen_LR_03.jpg)
/LR/Blu-Sub_M14DepthSen_LR_04.jpg)
/LR/Blu-Sub_M14DepthSen_LR_05.jpg)
/LR/Blu-Sub_M14DepthSen_LR_06.jpg)
/LR/Blu-Sub_M14DepthSen_LR_07.jpg)
/LR/Blu-Sub_M14DepthSen_LR_08.jpg)
/LR/Blu-Sub_M14DepthSen_LR_09.jpg)
/LR/Blu-Sub_M14DepthSen_LR_10.jpg)
/LR/Blu-Sub_M14DepthSen_LR_11.jpg)
/LR/Blu-Sub_M14DepthSen_LR_12.jpg)
/LR/Blu-Sub_M14DepthSen_LR_13.jpg)
/LR/Blu-Sub_M14DepthSen_LR_14.jpg)
/LR/Blu-Sub_M14DepthSen_LR_15.jpg)
/LR/Blu-Sub_M14DepthSen_LR_16.jpg)
Free delivery anywhere in IndiaUsually within 2 weeks. The date is confirmed on your quote.
SKU BS-SSC-DPTHS-SSX-14A1
Nothing to pay now. We reply within one business day with a quotation at this price and a delivery date.
- Part number
- BS-SSC-DPTHS-SSX-14A1
- Category
- Sensors
- Type
- Depth sensor
Subsea M14 Metal Diaphragm Depth Sensor (0-35Bar) price in India
| Options & SKU | Price | Add or enquire |
|---|---|---|
StandardBS-SSC-DPTHS-SSX-14A1 | ₹22,477.58 | Enquire about Standard |
Prices are in rupees and include GST and delivery anywhere in India. Delivery usually takes up to two weeks, and your quotation gives the exact date.
At a glance
Works with
You may also need
Used for
- Long-term submersion, continuous deployment, and high-vibration environments requiring maintenance-free depth monitoring
Specifications
| Product type | Depth sensor |
| Pressure Range | 0-35 Bar |
| Operating Depth | 0-350 m (0-1,148 ft) |
| Overpressure Limit | 70 Bar |
| Rated Current | 20 mA |
| Voltage | 5 V |
| Output Signal | USART (TTL), 115200 bps |
| Connector | XH2.54-4Pin, ~300 mm wire |
| Intrinsic Error | +/-0.2% FS (+/-0.72 m) |
| Total Error Range | +/-1% FS (3.6 m) |
| Mounting Hole | 14.1 +/- 0.1 mm, 18 mm recommended bulkhead thickness |
| Thread Size | M14 x 1.5 |
| Material | Stainless steel |
| Weight | 82 g |
| Operating Temperature | -10 to 80 C |
Works with these accessories
Subsea M8/M10 Depth Sensors, acrylic/aluminum enclosure tubes, Subsea Watertight Enclosure Box, O-Ring Lubricant (MOLYKOTE 111), spare O-ring sets.
Questions buyers ask
What is the Subsea M14 Metal Diaphragm Depth Sensor (0-35Bar) price in India?
₹22,477.58. Delivery anywhere in India is included in that price.
How deep can it go?
0-350 m (0-1,148 ft).
What pressure range does it cover?
0-35 Bar.
Can I get the datasheet and drawings?
Yes. Ask when you request a quote and we will send the manufacturer's datasheet and any drawings we have.
Can I return it?
Yes, within 30 days of delivery, if it is unused and in its original packaging. You pay the return shipping, and we refund 90% of the price after checking the part.
How do I order this in India?
Vebix Automation is an authorised Blu-Sub Mechatronics distributor in Pune and delivers across India. Add it to your cart, or request a quote with the option and quantity. We reply within one business day with a quotation at the listed price and a delivery date, usually within two weeks.
Compare with similar sensors
The manufacturer’s figures for this part and the ones most like it, side by side.
| Product | Voltage | Output Signal | Connector | Thread Size | Material |
|---|---|---|---|---|---|
| Subsea M14 Metal Diaphragm Depth Sensor (0-35Bar) this page | 5 V | USART (TTL), 115200 bps | XH2.54-4Pin, ~300 mm wire | M14 x 1.5 | Stainless steel |
| Subsea M10 Depth Sensor (0-30Bar) | 5 V | I2C, 3.3 V logic (address 0x76) | DF13-4S-1.25C, ~300 mm wire | M10 x 1 | Black anodized aluminum |
| Subsea M10 Water Temperature Sensor (BS-SSC-TEMPS-BLK-10A1) | 5 V | I2C, 3.3 V logic (address 0x77) | DF13-4S-1.25C, ~300 mm wire | M10 x 1 | Black anodized aluminum |
| Subsea M8 Depth Sensor (0-30 Bar / 0-300 m) | 5 V | I2C, 3.3 V logic (address 0x76) | DF13-4S-1.25C, ~300 mm wire | M8 x 1 | Anodized aluminum, black |
