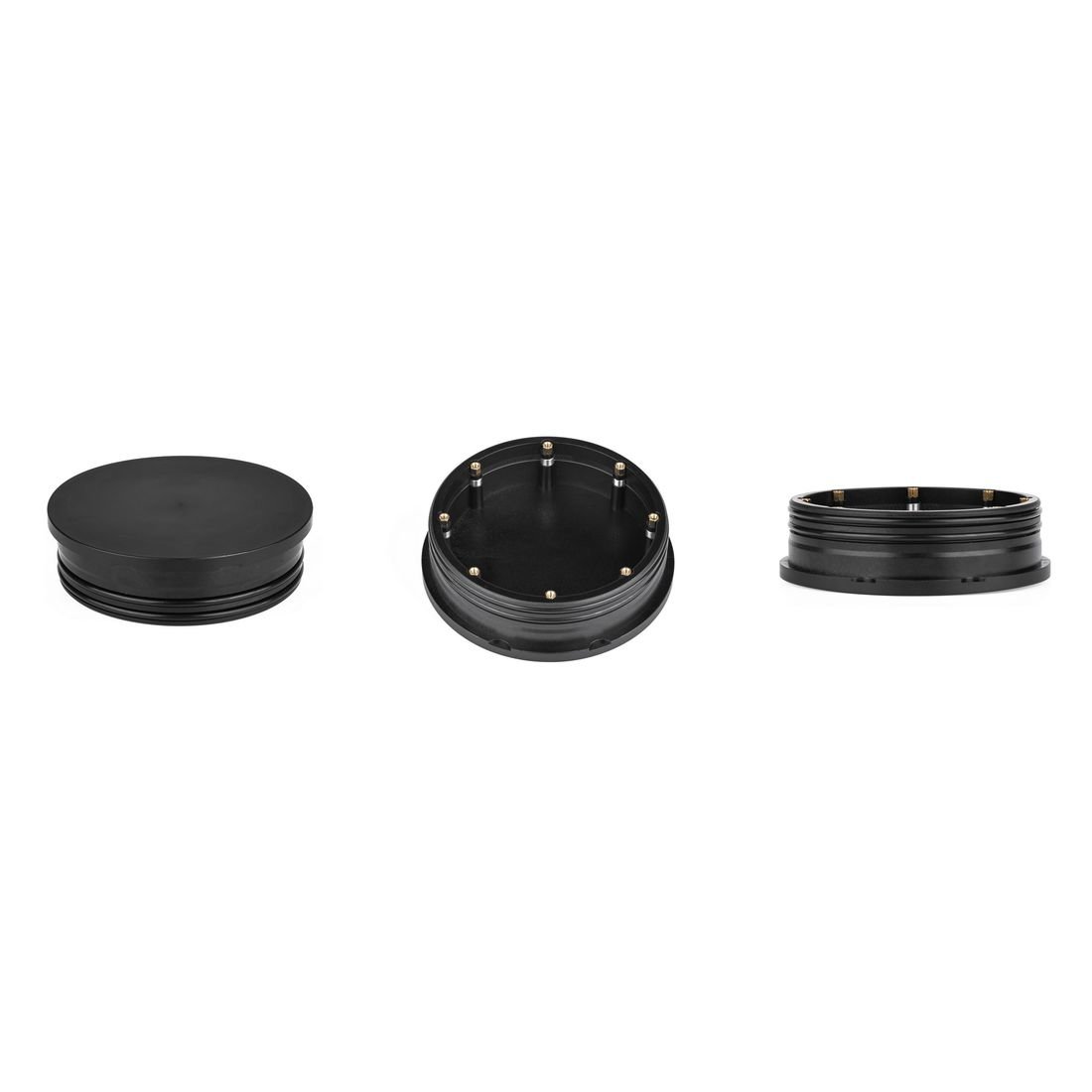

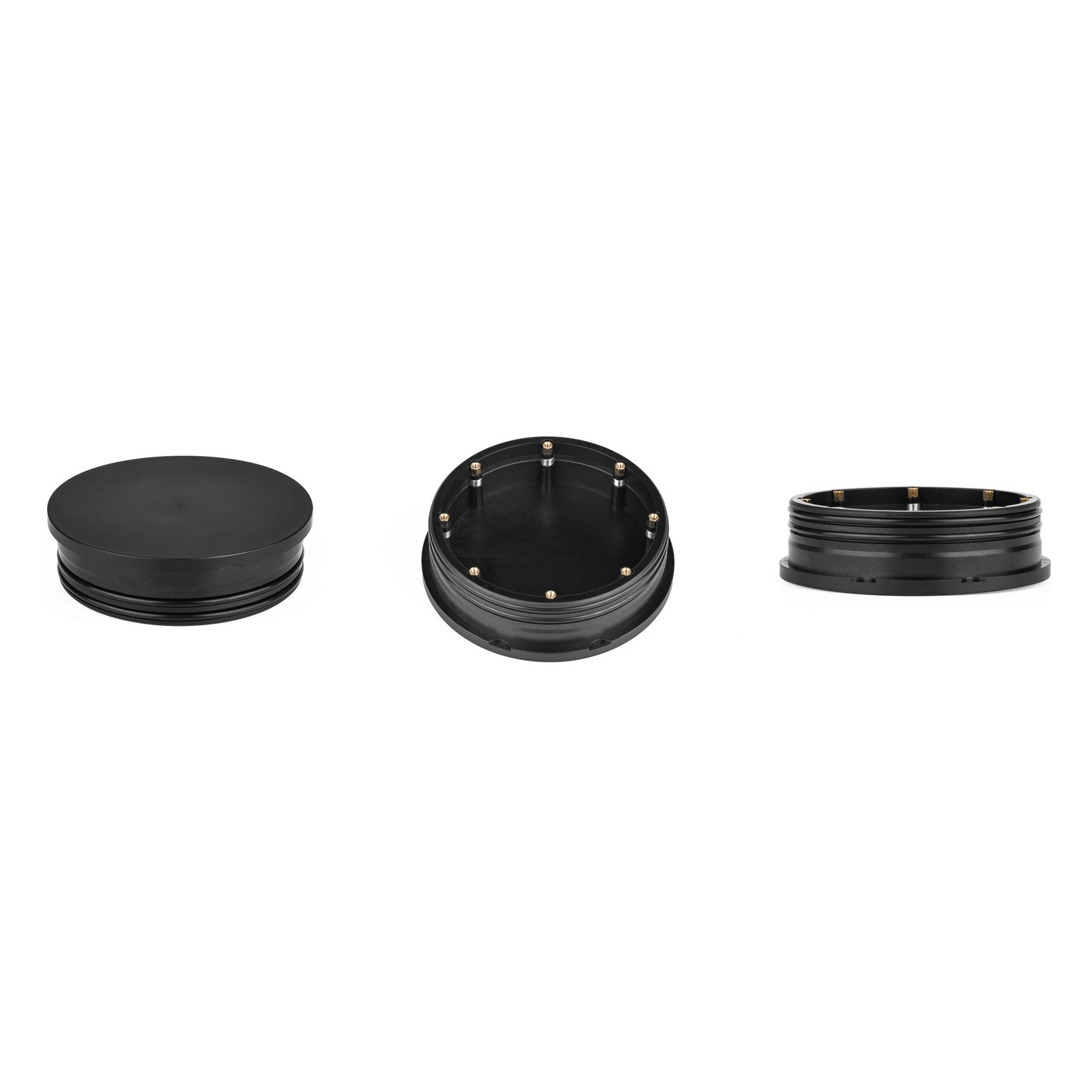

Subsea Polymer Flange & End-Cap
A lightweight, injection-molded flange/end-cap assembly made from black glass-filled nylon, combining flange and end-cap into a single integrated part for shallow-to-mid-depth applications where weight reduction and corrosion resistance matter. Features dual radial O-ring grooves for a watertight seal and a notch for tool-assisted disassembly.
1 / 13Click to enlarge
Free delivery anywhere in IndiaUsually within 2 weeks. The date is confirmed on your quote.
SKU BS-SSC-PFEDC-ALU-A2A1
Nothing to pay now. We reply within one business day with a quotation at this price and a delivery date.
- Part number
- BS-SSC-PFEDC-ALU-A2A1
- Category
- Enclosures
- Type
- Flange and end cap
Subsea Polymer Flange & End-Cap price in India
| Options & SKU | Price | Add or enquire |
|---|---|---|
StandardBS-SSC-PFEDC-ALU-A2A1 | ₹10,700.12 | Enquire about Standard |
Prices are in rupees and include GST and delivery anywhere in India. Delivery usually takes up to two weeks, and your quotation gives the exact date.
At a glance
Works with
You may also need
Used for
- Lightweight, corrosion-resistant end sealing for shallow/mid-depth 115mm subsea enclosures
Specifications
| SKU | BS-SSC-PFEDC-ALU-A2A1 |
| Product type | Flange and end cap |
| Depth Rating | 30 m / 98 ft (sealed, tested) |
| Material | Glass-fiber-filled nylon |
| Weight | 161 g (188 g shipped) |
| Outer Diameter | 115 mm |
| Height | 33.5 mm |
| Piston Diameter | 105.6 mm |
| End Face Thickness | 8 mm |
Works with these accessories
Subsea Enclosure Acrylic/Aluminum Tube; Electronic Tray Set for Enclosure Tube; M10 cable penetrators and bulkheads; M8/M10 vent and vacuum plugs; MOLYKOTE 111 lubricant (required for O-ring install)
Questions buyers ask
What is the Subsea Polymer Flange & End-Cap price in India?
₹10,700.12. Delivery anywhere in India is included in that price.
What is its depth rating?
30 m / 98 ft (sealed, tested).
What is it made of?
Glass-fiber-filled nylon.
Can I get the datasheet and drawings?
Yes. Ask when you request a quote and we will send the manufacturer's datasheet and any drawings we have.
Can I return it?
Yes, within 30 days of delivery, if it is unused and in its original packaging. You pay the return shipping, and we refund 90% of the price after checking the part.
How do I order this in India?
Vebix Automation is an authorised Blu-Sub Mechatronics distributor in Pune and delivers across India. Add it to your cart, or request a quote with the option and quantity. We reply within one business day with a quotation at the listed price and a delivery date, usually within two weeks.
Compare with similar enclosures
The manufacturer’s figures for this part and the ones most like it, side by side.
| Product | Material | Weight | Depth Rating |
|---|---|---|---|
| Subsea Polymer Flange & End-Cap this page | Glass-fiber-filled nylon | 161 g (188 g shipped) | 30 m / 98 ft (sealed, tested) |
| Aluminum Tube Enclosure Mounting Plate | Black anodized aluminum | 82 g (wide) / 19 g (narrow) | — |
| Electronic Tray Set for Enclosure Tube | Plastic-sprayed cold-rolled steel | 82-294 g depending on diameter/length | — |
| Enclosure Tray Shelf Support (Single-Point) | Cold-rolled steel plate, spray coated | 41-101 g depending on length | — |
| Insulated PCB Board Shelf for Enclosure Tube | Green double-sided insulated PCB material | 16-179 g depending on diameter/length | — |
| Subsea Acrylic End-Cap | Transparent polished acrylic | 46-195 g depending on size | 300 m (85mm) / 200 m (115mm) / 50 m (165mm) |
