Pix32 v6

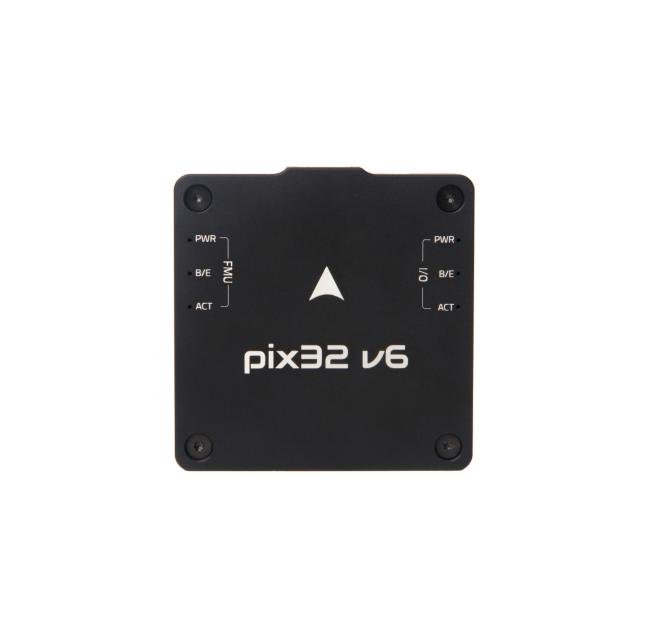

Holybro Pix32 v6 is a modular flight controller with its own baseboard range: the controller carries the compute and sensors, and a Pix32 V6 Standard or Mini baseboard provides the connectors and footprint. Its baseboards are not interchangeable with the Pixhawk 5X/6X range.
Click to enlargeFree delivery anywhere in IndiaUsually within 2 weeks. The date is confirmed on your quote.
SKU 11056
Nothing to pay now. We reply within one business day with a quotation at this price and a delivery date.
- Part number
- 11056
- Category
- Autopilot Flight Controllers
- Type
- Flight controller
Pix32 v6 price in India
| Options & SKU | Price | Add or enquire |
|---|---|---|
Standard11056 | ₹26,714.77 | Enquire about Standard |
Prices are in rupees and include GST and delivery anywhere in India. Delivery usually takes up to two weeks, and your quotation gives the exact date.
At a glance
Works with
You may also need
Used for
- Builds standardising on the Pix32 v6 baseboard range rather than the Pixhawk 6X one
Specifications
| Model | Pix32 v6 |
| Manufacturer | Holybro |
| Holybro SKU | 11056 |
| Product type | Flight controller |
| Product line | Pix32 v6 (separate baseboard required) |
| Category | Autopilot Flight Controllers |
| Processor | STM32H743, Cortex-M7, 480 MHz, 2 MB flash, 1 MB RAM |
| I/O processor | STM32F103 |
| IMU | ICM-42688-P, BMI088 |
| Magnetometer | IST8310 |
| Barometer | MS5611 |
| Module dimensions | 44.8 x 44.8 x 13.5 mm |
| Module mass | 36 g (module only, excludes the baseboard) |
| PWM outputs (module) | 16 |
| Serial ports (module) | 3 |
| GPS ports (module) | 2 |
| I2C ports (module) | 1 |
| CAN ports (module) | 2 |
| Baseboard connector | Panasonic AXK5S6S, 100 pins |
| Power inputs (module) | 2 |
| Autopilot power input | 6 V maximum |
| USB input | 4.75-5.25 V |
| Servo rail (pass-through, not a supply input) | 0-36 V |
| Interface note | Port availability depends on the baseboard; the Mini carrier exposes fewer than this. |
| Baseboard | Separate baseboard required |
Works with these accessories
Pix32 V6 Standard Baseboard and Pix32 V6 Mini Baseboard. Check baseboard compatibility explicitly: these are not the Pixhawk 5X/6X baseboards.
Questions buyers ask
What is the Pix32 v6 price in India?
₹26,714.77. Delivery anywhere in India is included in that price.
Can I get the datasheet and drawings?
Yes. Ask when you request a quote and we will send the manufacturer's datasheet and any drawings we have.
Can I return it?
Yes, within 30 days of delivery, if it is unused and in its original packaging. You pay the return shipping, and we refund 90% of the price after checking the part.
How do I order this in India?
Vebix Automation is an authorised Holybro distributor in Pune and delivers across India. Add it to your cart, or request a quote with the option and quantity. We reply within one business day with a quotation at the listed price and a delivery date, usually within two weeks.
Compare with similar autopilot flight controllers
The manufacturer’s figures for this part and the ones most like it, side by side.
| Product | Product line | Processor | IMU | Magnetometer | Barometer |
|---|---|---|---|---|---|
| Pix32 v6 this page | Pix32 v6 (separate baseboard required) | STM32H743, Cortex-M7, 480 MHz, 2 MB flash, 1 MB RAM | ICM-42688-P, BMI088 | IST8310 | MS5611 |
| Pix32 V6 Mini Baseboard | — | — | — | — | — |
| Pix32 V6 Standard Baseboard | — | — | — | — | — |
| Pixhawk 6C Aluminum | Pixhawk 6C (integrated baseboard) | STM32H743, Cortex-M7, 480 MHz, 2 MB flash, 1 MB RAM | ICM-42688-P, BMI088 | IST8310 | MS5611 |
| Pixhawk 6C Mini Model-A | Pixhawk 6C Mini (integrated baseboard) | STM32H743, Cortex-M7, 480 MHz, 2 MB flash, 1 MB RAM | ICM-42688-P, BMI088 | IST8310 | MS5611 |
| Pixhawk 6C Mini Model-B | Pixhawk 6C Mini (integrated baseboard) | STM32H743, Cortex-M7, 480 MHz, 2 MB flash, 1 MB RAM | ICM-42688-P, BMI088 | IST8310 | MS5611 |
