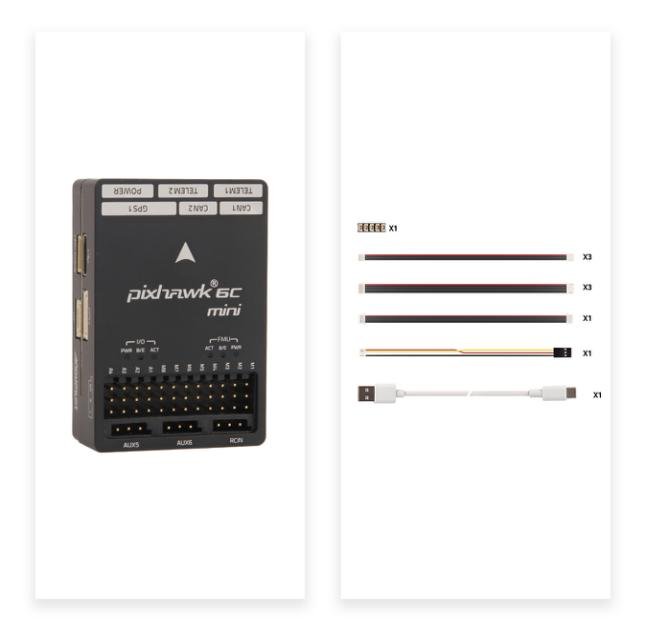

Pixhawk 6C Mini Model-B
Holybro Pixhawk 6C Mini is the smaller-footprint member of the 6C family, with the same integrated-baseboard arrangement: one part number, a fixed connector set, no separate baseboard to specify. Model-B and Model-A are separate part numbers for the same controller, so quote the SKU rather than "a 6C Mini" and confirm which connector and cable set the quotation includes.
Click to enlargeFree delivery anywhere in IndiaUsually within 2 weeks. The date is confirmed on your quote.
SKU 11079
Nothing to pay now. We reply within one business day with a quotation at this price and a delivery date.
- Part number
- 11079
- Category
- Autopilot Flight Controllers
- Type
- Flight controller
Pixhawk 6C Mini Model-B price in India
| Options & SKU | Price | Add or enquire |
|---|---|---|
Standard11079 | ₹24,722.29 | Enquire about Standard |
Prices are in rupees and include GST and delivery anywhere in India. Delivery usually takes up to two weeks, and your quotation gives the exact date.
At a glance
You may also need
Used for
- Compact multirotor and fixed-wing airframes where a full-size 6C will not fit the electronics bay
Specifications
| Model | Pixhawk 6C Mini |
| Manufacturer | Holybro |
| Holybro SKU | 11079 |
| Product type | Flight controller |
| Product line | Pixhawk 6C Mini (integrated baseboard) |
| Category | Autopilot Flight Controllers |
| Processor | STM32H743, Cortex-M7, 480 MHz, 2 MB flash, 1 MB RAM |
| IMU | ICM-42688-P, BMI088 |
| Magnetometer | IST8310 |
| Barometer | MS5611 |
| PWM outputs | 14 (8 I/O + 6 FMU) |
| Serial ports | 2 |
| Flow control | Supported |
| GPS ports | 2 |
| I2C ports | 1 |
| CAN ports | 2 |
| Analog power inputs | 1 |
| Autopilot power input | 6 V maximum |
| USB input | 4.75-5.25 V |
| Servo rail (pass-through, not a supply input) | 0-36 V |
| Dimensions | 58.3 x 39 x 18.15 mm |
| Baseboard | Integrated |
| Variant | Model-B |
| Mass | 46.8 g |
Works with these accessories
Analog power modules such as the PM02 V3, Holybro M10 GNSS, SiK telemetry radios. Model-A is the sibling part number; check which variant a quotation covers.
Questions buyers ask
What is the Pixhawk 6C Mini Model-B price in India?
₹24,722.29. Delivery anywhere in India is included in that price.
How big is it?
58.3 x 39 x 18.15 mm.
Can I get the datasheet and drawings?
Yes. Ask when you request a quote and we will send the manufacturer's datasheet and any drawings we have.
Can I return it?
Yes, within 30 days of delivery, if it is unused and in its original packaging. You pay the return shipping, and we refund 90% of the price after checking the part.
How do I order this in India?
Vebix Automation is an authorised Holybro distributor in Pune and delivers across India. Add it to your cart, or request a quote with the option and quantity. We reply within one business day with a quotation at the listed price and a delivery date, usually within two weeks.
Compare with similar autopilot flight controllers
The manufacturer’s figures for this part and the ones most like it, side by side.
| Product | Product line | Processor | IMU | Magnetometer | Barometer |
|---|---|---|---|---|---|
| Pixhawk 6C Mini Model-B this page | Pixhawk 6C Mini (integrated baseboard) | STM32H743, Cortex-M7, 480 MHz, 2 MB flash, 1 MB RAM | ICM-42688-P, BMI088 | IST8310 | MS5611 |
| Pix32 V6 Mini Baseboard | — | — | — | — | — |
| Pix32 V6 Standard Baseboard | — | — | — | — | — |
| Pix32 v6 | Pix32 v6 (separate baseboard required) | STM32H743, Cortex-M7, 480 MHz, 2 MB flash, 1 MB RAM | ICM-42688-P, BMI088 | IST8310 | MS5611 |
| Pixhawk 6C Aluminum | Pixhawk 6C (integrated baseboard) | STM32H743, Cortex-M7, 480 MHz, 2 MB flash, 1 MB RAM | ICM-42688-P, BMI088 | IST8310 | MS5611 |
| Pixhawk 6C Mini Model-A | Pixhawk 6C Mini (integrated baseboard) | STM32H743, Cortex-M7, 480 MHz, 2 MB flash, 1 MB RAM | ICM-42688-P, BMI088 | IST8310 | MS5611 |
