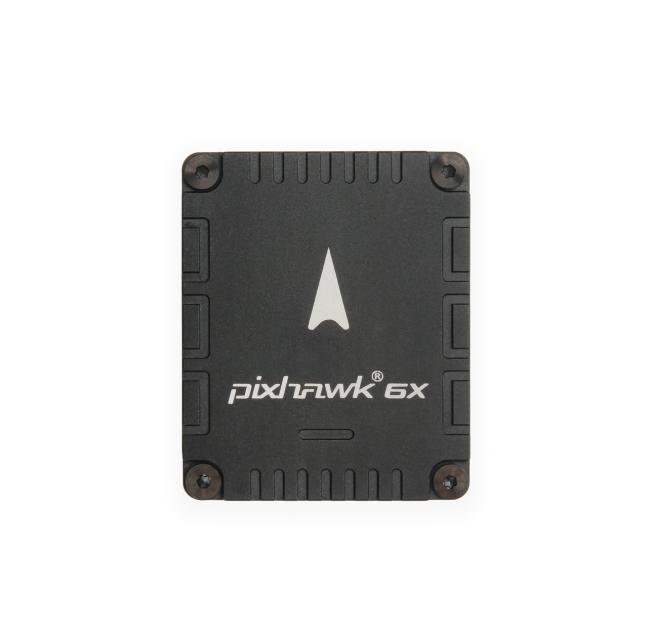

Pixhawk 6X
Holybro Pixhawk 6X is a modular flight controller: a compute module carrying the processor and sensors, built to the Pixhawk Autopilot Bus standard. It has no connectors of its own — a separately chosen baseboard provides those, along with the mounting footprint and, on the Jetson and CM4 boards, a companion computer on the same PCB. Order the baseboard as a second line item: a 6X on its own cannot fly an aircraft.
Click to enlargeFree delivery anywhere in IndiaUsually within 2 weeks. The date is confirmed on your quote.
SKU 11073
Nothing to pay now. We reply within one business day with a quotation at this price and a delivery date.
- Part number
- 11073
- Category
- Autopilot Flight Controllers
- Type
- Flight controller
Pixhawk 6X price in India
| Options & SKU | Price | Add or enquire |
|---|---|---|
Standard11073 | ₹29,473.59 | Enquire about Standard |
Prices are in rupees and include GST and delivery anywhere in India. Delivery usually takes up to two weeks, and your quotation gives the exact date.
At a glance
Works with
You may also need
Used for
- Research and production aircraft where the I/O set is a design variable, where the airframe is not a standard multirotor, or where a companion computer has to sit alongside the autopilot
Specifications
| Model | Pixhawk 6X |
| Manufacturer | Holybro |
| Holybro SKU | 11073 |
| Product type | Flight controller |
| Product line | Pixhawk 6X (separate baseboard required) |
| Category | Autopilot Flight Controllers |
| Processor | STM32H753, Cortex-M7, 480 MHz, 2 MB flash, 1 MB RAM |
| I/O processor | STM32F103 |
| IMU (revision 8) | ICM-45686, ICM-45686, ICM-45686 |
| IMU (revisions 3 and 4) | BMI088 or ICM-20649, ICM-42688-P, ICM-42670-P |
| Magnetometer (revision 8) | BMM150 |
| Magnetometer (revisions 3 and 4) | BMM150 |
| Barometer (revision 8) | ICP20100, BMP388 or 580 or 581 |
| Barometer (revisions 3 and 4) | BMP388, BMP388 |
| Sensor revision | The sensor set differs by board revision. Confirm the revision supplied before relying on a specific part. |
| Module dimensions | 38.8 x 31.8 x 14.6 mm |
| Module mass | 23 g (module only, excludes the baseboard) |
| PWM outputs (module) | 16 |
| Serial ports (module) | 4 |
| Serial ports with flow control | 3 |
| GPS ports (module) | 2 |
| I2C ports (module) | 1 |
| SPI ports (module) | 1 |
| CAN ports (module) | 2 |
| Ethernet | 100 Mbps |
| Power inputs (module) | 2 |
| Autopilot power input | 6 V maximum |
| USB input | 4.75-5.25 V |
| Servo rail (pass-through, not a supply input) | 0-36 V |
| Interface note | Depends on the baseboard |
| Baseboard | Separate baseboard required |
| Standard | Pixhawk Autopilot Bus module |
Works with these accessories
Pixhawk Standard Baseboard V2A and V2B, Mini Baseboard, Jetson baseboard and RPi CM4 baseboard. Digital I2C power modules such as the PM02D. The 6X Pro is the higher-tier module in the same family.
Questions buyers ask
What is the Pixhawk 6X price in India?
₹29,473.59. Delivery anywhere in India is included in that price.
Can I get the datasheet and drawings?
Yes. Ask when you request a quote and we will send the manufacturer's datasheet and any drawings we have.
Can I return it?
Yes, within 30 days of delivery, if it is unused and in its original packaging. You pay the return shipping, and we refund 90% of the price after checking the part.
How do I order this in India?
Vebix Automation is an authorised Holybro distributor in Pune and delivers across India. Add it to your cart, or request a quote with the option and quantity. We reply within one business day with a quotation at the listed price and a delivery date, usually within two weeks.
Compare with similar autopilot flight controllers
The manufacturer’s figures for this part and the ones most like it, side by side.
| Product | Product line | Processor | Autopilot power input | USB input | Servo rail (pass-through, not a supply input) |
|---|---|---|---|---|---|
| Pixhawk 6X this page | Pixhawk 6X (separate baseboard required) | STM32H753, Cortex-M7, 480 MHz, 2 MB flash, 1 MB RAM | 6 V maximum | 4.75-5.25 V | 0-36 V |
| Pix32 V6 Mini Baseboard | — | — | — | — | — |
| Pix32 V6 Standard Baseboard | — | — | — | — | — |
| Pix32 v6 | Pix32 v6 (separate baseboard required) | STM32H743, Cortex-M7, 480 MHz, 2 MB flash, 1 MB RAM | 6 V maximum | 4.75-5.25 V | 0-36 V |
| Pixhawk 6C Aluminum | Pixhawk 6C (integrated baseboard) | STM32H743, Cortex-M7, 480 MHz, 2 MB flash, 1 MB RAM | 6 V maximum | 4.75-5.25 V | 0-36 V |
| Pixhawk 6C Mini Model-A | Pixhawk 6C Mini (integrated baseboard) | STM32H743, Cortex-M7, 480 MHz, 2 MB flash, 1 MB RAM | 6 V maximum | 4.75-5.25 V | 0-36 V |
